Roof Tile Corrugated Iron Sheet Making Machine 5.5Kw Servo Motor 14 Forming Steps

1). Main Techincal Data:

2). Main Accessories:

(1). Main Forming Machines;

(2). 5 Tons Manual Uncoiler;

(3). Hydraulic System;

(4). PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching

screen, cencorder and frequency changer)

(5). Hydraulic Forming Cutter;

(6). Tools;

(7). Operation Manual.

1) Professional designing for manufactures roofing & walling
2) Automatically continually manufactures high quality product with PLC.
3) Easy operation : Directly input the data on the touchable screen.
4) Customers decide the profile of products.
5) Saving time and cost owing to high speed running with hydraulic system.
6) One year warranty.

Our advantageous:

1): Factory direct supply price.

2): We have exported for more than 10 years.

3): Our customer are from about 40 countries.

4): We have the professional research team. We can make the machine according to your requirement.

5): High-end and high-grade design

Technical Specification
(1) Manual decoiler
Un-powered; single head;
max.capacity: 5000kg;
Coil inner-diameter: 508mm

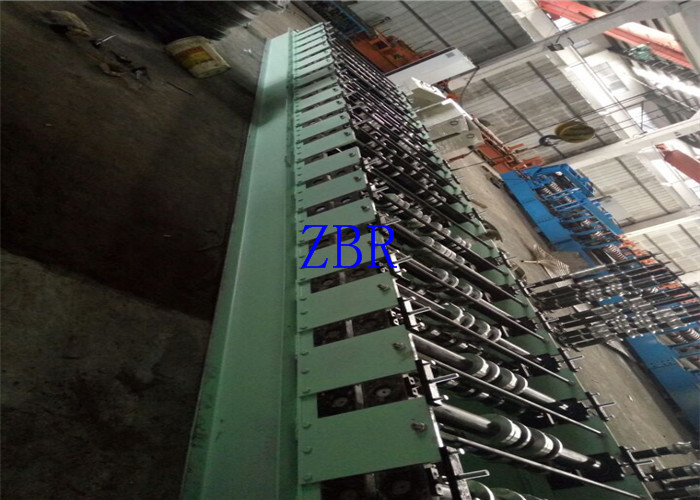

(2) Roll-Forming M/C:
Steps:13 Roller Material: 45# steel
Voltage:380V/50Hz. line speed:3-6m/min;
Rolling chromium thickness:0.05 mm
(3) Cutting Mechanism
It adopts hydraulic drive and automatic location to decide the dimention and cut the target products.
Match equipment : one set of cutting tool, one hydraulic tank ,one cutter machine.
Stop to cut , Post cut cutting length tolerance: ±2mm
Cutting tool material: GCr12 with quenched treatment 60-62°C
(4) Hydraulic System
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Match equipment: a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes and two sets of electromagnetism valves.
Power of the oil pump: 3kw Hydraulic oil :40#
(5) Computer control cabinet :
It adopts Taida PLC to control. The target piece length is adjustable and digit of it can be adjusted
Computed mode has two modes: automatic and manual one.
(6) Counter :
One counter gauges length, pulses, and decides length
(7) Output table
It used to load the forming plate
