Cold Joint Hidden Roof Making Machine 3 Ton 18mm Side Wall Thickness

1. Details of joint hidden roof panel roll forming machine

Material

Material Thickness(&):0.5-0.7mm

Applicable material:Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils,yield strength 245Mpa or 550Mpa

Machine Components

1) Manual Decoiler: one set

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

2) Cold Rolling Mills:

Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;

Motor Driving,Gear chain transmission, 17 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)

Main Motor=7.5KW , Frequency speed control

Forming speed approx.12-15m/min

3) Hydraulic Cutting device

hydraulic motor: 2.2KW, Hydraulic pressure range: 0-16Mpa

Cutting tool material: Cr12, Heat treatment

4) PLC Control System(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo)

Control the quantity and cutting length automatically

Combined with: PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-length tolerance≤±1mm

Control Voltage 24V

5) Exit Rack Un-powered, two units

2. Machine features of joint hidden roof panel roll forming machine

The advantages of metal roof panel cold roll forming machineare as follows:

1. Easy operation, low maintenance cost
2. Material saving

3. Type of penel is wide used.

4. Easy operation, short construction period

3. Detailed images of joint hidden roof panel roll forming machine

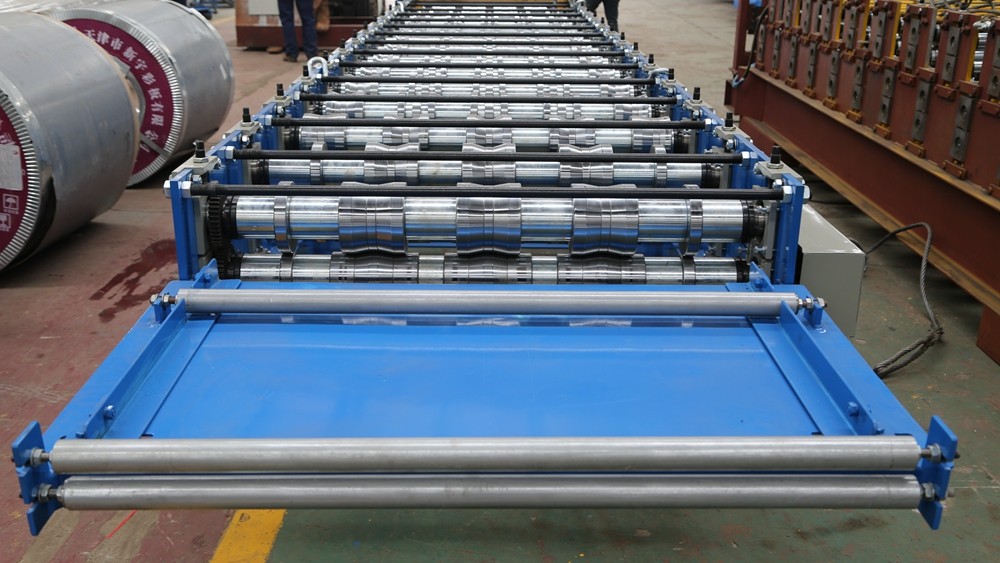

Name: feeding device

Brand: ZBR

Original: China

make the steel materials move more smoothly

Name: cutting system
Brand: ZBR
Original: China
made by high quality mold steel Cr12 with heat treatment

Name: rollers
Brand: ZBR
Original: China
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for options.

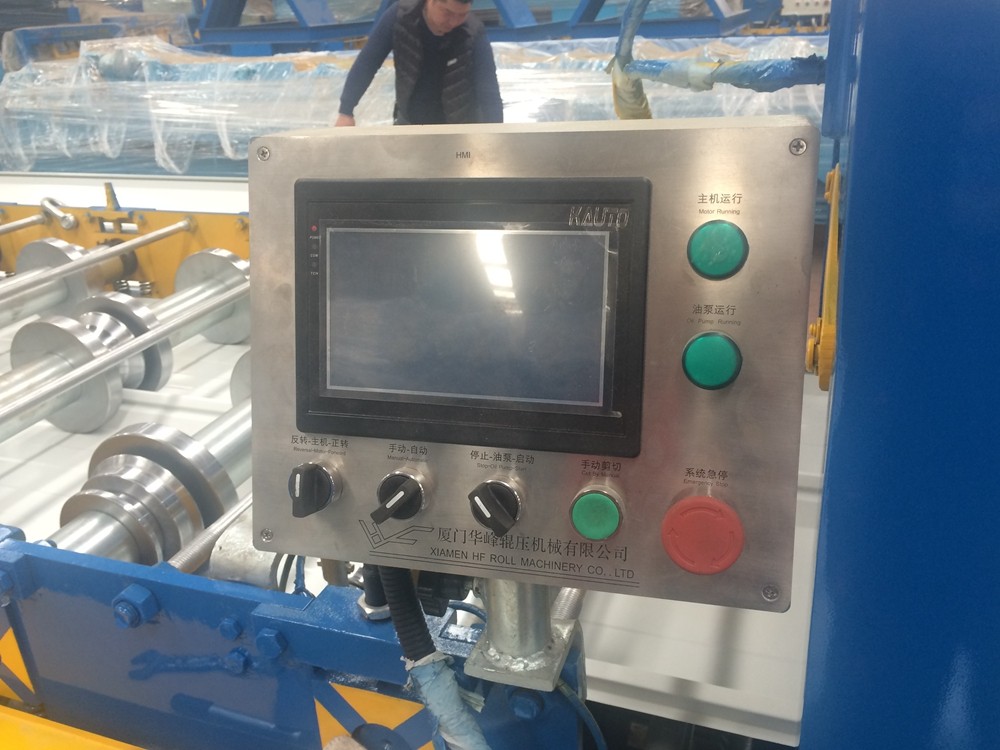

Name: PLC control system
Brand: SIEMENS/SCHNEIDER ELECTRIC
Original: Germany/France
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Encoder: KOYO/Omron (Japan brand)

Wuxi Zhongborui Machinery Co., Ltd is specialized in manufacturing all kinds of roll forming machines, such as glazed tile roll forming machine, wall & roof panel roll forming machine, Floor Deck Roll Forming Machine, Metal Roofing Corrugated Tile Roll Forming Machine, U &C&Z Profile Roll Forming Machine and so on.

Our company holds a professional team of skilled experts, managerial talents with modern management consciousness, meanwhile, we committed to the research and developing of new kinds of machines, which makes us becomes stronger and stronger, from a small factory only produce single glazed tile making machine to now we have manufactured many series of roll forming machines. Our products can meet all the steel structure building requirements. Our customers are covered all over the world and the machines are export to Australia, Southeast Asia, South Africa and other regions.

Our quality principle: everyone joins in, and manufacturing conforming machine products with reasonable cost. We always design the special coil process equipment as per customer’s drawing or sample, trying our best to satisfy the customer.

After-sales service: our experts with rich experience will provide on-site commissioning.

We always keep our business principle in mind--"reliable quality" & "attentive service"

Sincerely wish to establish a long-run business relationship with friends both at home and abroad,
