Rain Gutters Installation Downspout Roll Forming Machine TUV Approval​

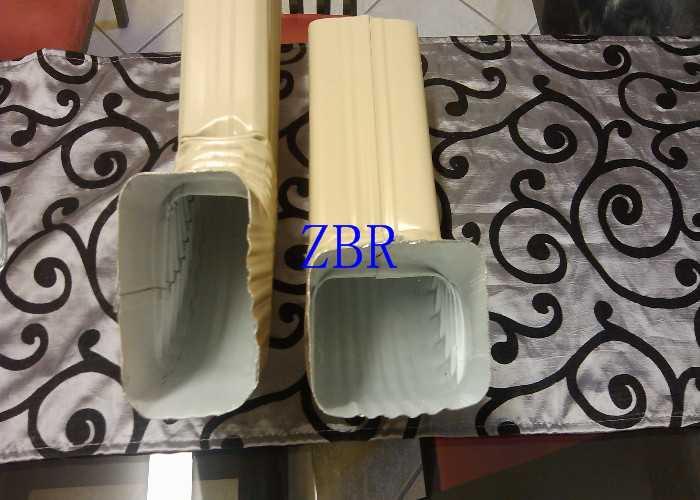

Downspouts are drainage pipes that direct rain water from the roof to the ground. This is where the rainwater is lead away from the buildings foundation so that no rainwater is able to pool around the building. Downspouts are most commonly seen attached to the corners of home or building. Without perfectly working downspouts, rainwater will fall off the roofs edge and may cause flooding and damage to the building. Rain water will pass through the cracks in the walls, windows and into the buildings foundation.
The problem with downspouts is that they clog very easily when leaves, twigs, and other debris accumulate within the downspout itself. This makes it difficult for the rainwater to drain properly throughout the downspout.
Any debris that is found in the gutters should be removed. Running a hose through the gutters will reveal if there are any clogs in the downspouts. Downspouts are mostly attached to the house by downspout brackets, which can be easily removed for further cleaning if the downspout becomes highly clogged with debris.
At GutterSupply.com our gutters and downspouts are made up of aluminum, copper, copper penny aluminum, copper clad, euro copper, galvalume, galvanized steel, designer copper aluminum, lead coated copper, freedom gray copper, paint grip steel, preweathered zinc.

II. Square downspout roll forming machine/downspout machine for sale parameters

A. Composition of machine

Roll forming main machine………………………….…1 unit

10 Tons hydraulic de-coiler with coil car………….1 set

Punching system……………………………………2 units

Control panel…………………………………………..1 unit

Hydraulic station……………………………………1 unit

3M auto stacker……………………… ………………2 unit

Spare tools……………………………………………one box

B. Details of each composition

• Roll forming main machine

1. Coil width: 1000mm effective width:930+3-3 mm (design base on 3mm).

2. Working speed: 0-20m/min (not contain cutting and punching).

3. Roll station: 17stations material of roller: Gcr15 bearing material; polished and coated with chrome HRC58-62°.

4. Material of main shaft: 45 forge steel(Same as SAE1045) diameter roller: 150mm.

5. Main power: 45kw, forming thickness: 2.5mm—3.5mm, Transmission: by chain.

6. Roll former has leveling bolts in the base

• Cutting

1. Machine adopt hydraulic cutting

2. Cutting after forming: Cut the sheet after roll forming to required length

3. Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

4. Material of blade: CR12with heat treatment

5. Length measuring: Automatic length measuring

6. Tolerance of length: 4700mm+/- 2mm

• De-coiler

1. Single unrolling machine, one side can put material

2. Adopt automatic hydraulic system

3. Coil weight (Max):10000kg

4. Inter diameter: 470mm-520mm

5. Maximal out diameter:1800mm

6. Oil cylinder dia:120mm working pressure: 20mpa (=20Tons)

7. Coil width (Max.):1000mm

8. Working speed: 0-25m/min

9. Power: 5.5KW

10. Hydraulic power: 3kw

11. De-coiler should be with Loop control and hold down

12. Coil car: 10Tons

13. The motor power of coil car: 3Kw

14. Pressure: 12Mpa

• Control panel

(1) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase

(2) Automatic length measurement:

(3) Automatic quantity measurement

(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

(5) Length inaccuracy can be amended easily.

(6). Control panel: Button-type switch and touch screen

(7) Unit of length: millimeter (switched on the control panel)

(8) Laguage: English, Spanish and Chinese

Wuxi Zhongborui Machinery Co., Ltd is specialized in manufacturing all kinds of roll forming machines, such as glazed tile roll forming machine, wall & roof panel roll forming machine, Floor Deck Roll Forming Machine, Metal Roofing Corrugated Tile Roll Forming Machine, U &C&Z Profile Roll Forming Machine and so on.

Our company holds a professional team of skilled experts, managerial talents with modern management consciousness, meanwhile, we committed to the research and developing of new kinds of machines, which makes us becomes stronger and stronger, from a small factory only produce single glazed tile making machine to now we have manufactured many series of roll forming machines. Our products can meet all the steel structure building requirements. Our customers are covered all over the world and the machines are export to Australia, Southeast Asia, South Africa and other regions.

Our quality principle: everyone joins in, and manufacturing conforming machine products with reasonable cost. We always design the special coil process equipment as per customer’s drawing or sample, trying our best to satisfy the customer.

After-sales service: our experts with rich experience will provide on-site commissioning.

We always keep our business principle in mind--"reliable quality" & "attentive service"

Sincerely wish to establish a long-run business relationship with friends both at home and abroad,
