Color steel roll panel is the color coating steel plate and the
roller of cold bending into various wave types of pressure
plate. It is used in industrial and civil building, warehouse,
construction, large span steel structure housing roof, walls,
and internal and external wall decoration, is a lightweight, high
strength, color rich affluence, convenient and quick
construction, earthquake, fire, rain, long service life,
maintenance free characteristics, has been widely applied.
First, the main technical parameters
1. Rolled Product Material: Width: 480mm, thickness 2.0-4.0mm,
Q235A galvanized steel sheet
2. Working speed: 10-12M / min
3. Roller group number: 15 sets of main roller +7 roller leveling
4. Roller material: Gcr15 bearing steel quenching treatment,
HRC58-62
5. Spindle material: 45 high quality steel quenched and tempered
6. Spindle diameter: ¢ 100mm
7. Main motor power: 30kW
8. Transmission: chain drive
9. Leveling motor power: 5kW
10. Hydraulic motor power: 11kW, pressure: 20Mpa
11. Punching and cutting methods: using hydraulic drive, flat
punching, cutting off after molding
12. Electric control system: The whole machine adopts industrial
computer PLC frequency conversion control, cutting length error ≤
2mm
13. Host dimensions (mm): 13500x2700x1600
Second, the main structure
YXM192 highway guardrail board machine consists of 3T manual
feeding device, transmission device, leveling device, two sets of
front punching device, forming roller table and host (including
guide platform), after cutting device, computer control box,
Devices and other components.
Third, the equipment production process
10T simple discharge - guided feeding - seven-roller leveling -
flat punching - roll forming --- PLC computer length - cut after
molding - finished care out of the plate.

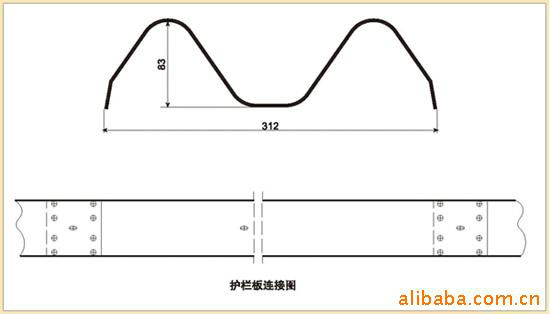

Fourth, the product shape
