Servo Motor Roofing Corrugated Sheet Roll Forming Machine Hydraulic
Pillar Cutting
1. PLC computer control
2. No noise, no shake
3. Hydraulic system, long operating
4. Easy operation
5. Maintenance-free
6. Hydraulic Pillar Cutting
7. Servo Motor
One machine can produce two kinds of profiles
828-207-28 roof panel or one more wave length wider 828+207=1035mm
1035-207-28 roof panel.
1035-207-28 roof making machine can produce both 828-207-28 and
1035-207-28 roof sheet
Ps:We are factory,we know better what kind of machine buyers need
and we are good at designing totally as buyers' panel or samples.
1. Quick Look
| 1 | Direct Roof Forming Machine Factory/Manufactuer |
| 2 | CE authentication book |
| 3 | PLC Automatic Production Line |
| 4 | Many profile design available |
2. Main Parameters
| 1 | Feeding Width | 1000mm or Panel Drawing as custome design |
| 2 | Material Thickness | 0.3-0.8mm |
| 3 | Cutting Blade | Cr12 Mould Steel with heat treatment |
| 4 | Forming Steps | 9-15 roller steps accroding to the tile drawing |
| 5 | Roll Material | Hard Forged 45# steel, Quenching and tempering |
| 6 | Motor Power | 5.5 KW |
| 7 | Pump Station | 4 KW |
| 8 | Speed | 8-12m/min Electric Motor Drive |
| | 10-15m/min Hydraulic Motor Drive |
| 9 | Size | 6800*1450*1500mm |
| 10 | Weight | about 3.5 tons |
| 11 | Control Systerm | PLC Computer Controller |
| 12 | Diameter of shaft | 75mm,45# steel,Hard Forged |
Ps:All parameters above are changeable.We shall design the machine
according to your requirement.
3. One Forming Machine Line
| 1 | 5 Ton Manual Uncoiler | 1 Set |
| 2 | Collection Tables | 3 Sets |
| 3 | Quick-Wear Parts | 1 Set |
4. Service
| 1 | 1 year warranty |
| 2 | Overseas service available |
5. Packing
| One 40-ft Container can load three machines. |
6. Payment
| 30% TT in advance and balance before checking and loading machine |
| 30%TT in advance and balance after copy of bill of loading |
| 30%TT in advance and balance at sight irrepealable bill of loading |
10.FAQ
1. Q: Are you manufacture or trading company?
A: We are professional manufacturer for roll forming machine.
2. Q: When did u start producing roll forming machine?
A: Our company was signed in 2008, and our boss has 8 years'
experience of machinery.
3. Q: Why should I choose you?
A: We have years' experience to design and provide lower price for
customer.
4. Q: How many kinds of products do you produce?
A: We have produced dozens shapes of panels including glazed, roof
ridge and door panel, and so on for customers during last years.
5. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wuxi, Jiangsu province. We could pick
you up from Wuxi Station or Shanghai airport when you come.

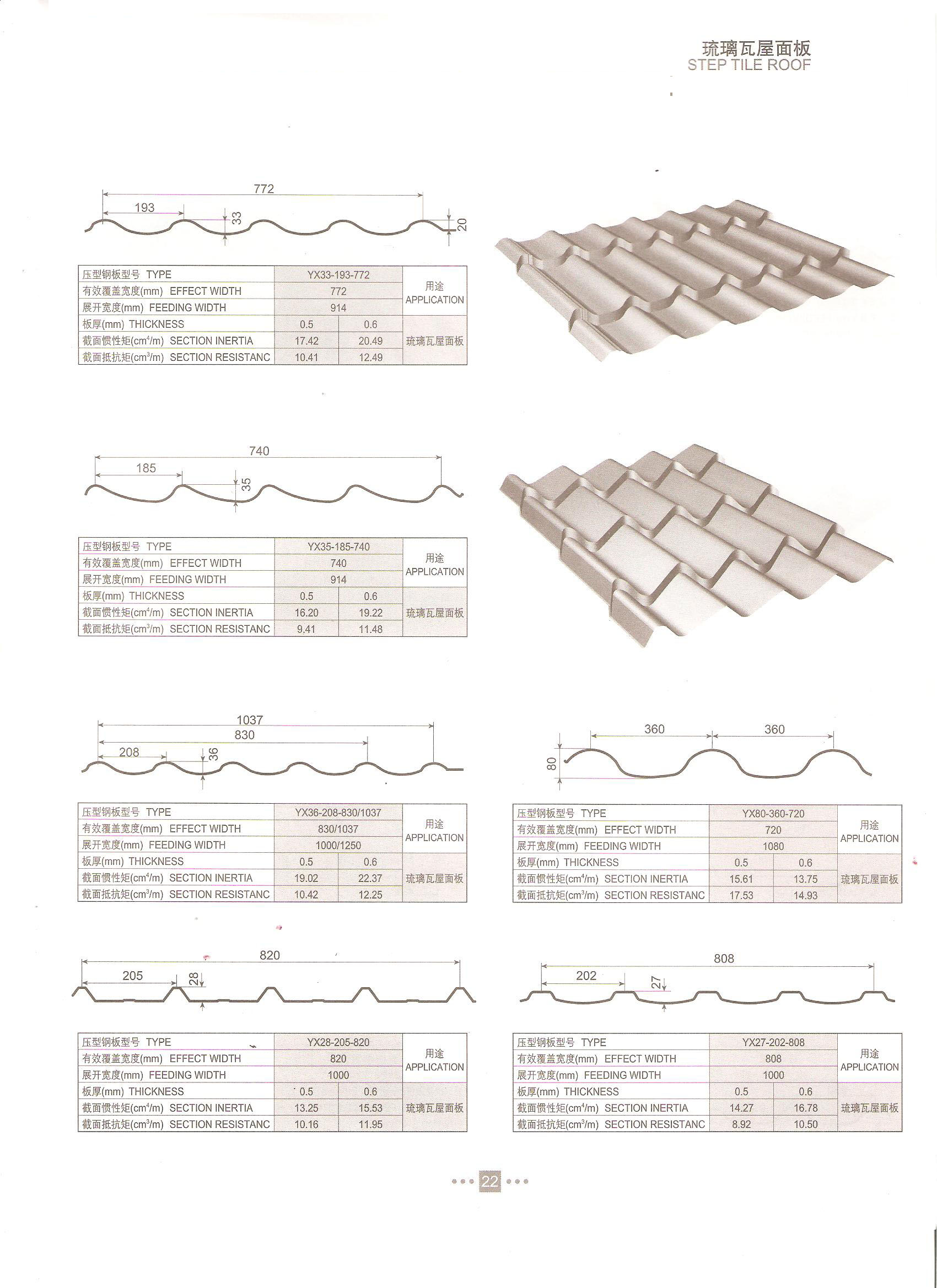

Profile Drawing
