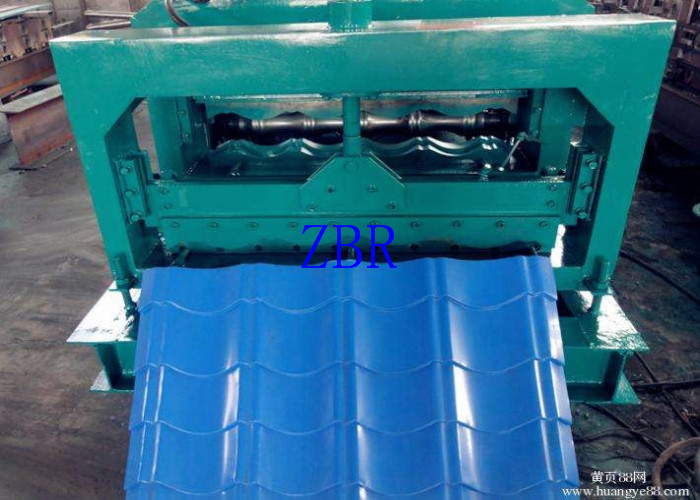

PLC Control Roof Tile Making Machine , Glazed Tile Forming Machine 32Mpa Yield Strength​

Glazed Tile Roll Forming Machine, Glazed tile forming machine, glazed tile, roll forming machine



1. Working Flow:

Decoiling--feeding---forming---cutting---pressing---finished product

2. Parts of Equipment:

Decoiler, roll forming machine, hydraulic cutting device, pressing device, electric system(PLC control system), hydraulic system, stacker.

3. Techincal description:

1). Main Motor Power: 5.5KW
2). Hydraulic Station Power: 4KW
3). Hydraulic Oil Pump: CB-E310
4). Sprocket: P-25.4
5). Roller Station: 16
6). Yield Strength: 32MPa
7). Diameter of Principal Axis: 80mm
8). Material of Roller: 45#steel hard chrome plating
9). Material of Blade: Cr12
10). Processing Speed: 4m/min
11). Thickness: 0.3-1mm
12). Installation Dimension (L*W*H): 8.5m*1.5m*1.4m
13). Total Weight: 5.7T
14). Equipment Parts: Forming machine, press mould, hydraulic cutter(30mm steel board welded ) hydraulic station, hydraulic motor, PLC, equipment base (GB360channel steel welded) and linear transducer.


4. Our Certificate

CE SGS

5. Terms

Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 12months

6. Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

B. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things

7. After Service
A. One year guarantee for whole machine.
B. 24 hours technica support by email or calling.
C. If there is any problem found of the machine, we will repair it for free in one year.

8. Primary Competitive Advantages:

· Guarantee/Warranty
· Price
· Product Performance
· Prompt Delivery
· Quality Approvals
· Reputation
· Service
· Small Orders Accepted

9. OEM Services
We can design and manufacture the machine according to the customers' requirement. You can send me the profile drawing and we will design the machine to you.
We provide you the machines not only with best quality
But also best service for you.
By the way, we warmly weclome you to visit our facory!

Wuxi Zhongborui Machinery Co., Ltd is specialized in manufacturing all kinds of roll forming machines, such as glazed tile roll forming machine, wall & roof panel roll forming machine, Floor Deck Roll Forming Machine, Metal Roofing Corrugated Tile Roll Forming Machine, U &C&Z Profile Roll Forming Machine and so on.

Our company holds a professional team of skilled experts, managerial talents with modern management consciousness, meanwhile, we committed to the research and developing of new kinds of machines, which makes us becomes stronger and stronger, from a small factory only produce single glazed tile making machine to now we have manufactured many series of roll forming machines. Our products can meet all the steel structure building requirements. Our customers are covered all over the world and the machines are export to Australia, Southeast Asia, South Africa and other regions.

Our quality principle: everyone joins in, and manufacturing conforming machine products with reasonable cost. We always design the special coil process equipment as per customer’s drawing or sample, trying our best to satisfy the customer.

After-sales service: our experts with rich experience will provide on-site commissioning.

We always keep our business principle in mind--"reliable quality" & "attentive service"

Sincerely wish to establish a long-run business relationship with friends both at home and abroad,
