Window / Door Frame Roll Forming Machine 5.5 KW 380V With PU Foam Insulated

    Buy cheap Window / Door Frame Roll Forming Machine 5.5 KW 380V With PU Foam Insulated from wholesalers

    Buy cheap Window / Door Frame Roll Forming Machine 5.5 KW 380V With PU Foam Insulated from wholesalers
    • Buy cheap Window / Door Frame Roll Forming Machine 5.5 KW 380V With PU Foam Insulated from wholesalers

    Window / Door Frame Roll Forming Machine 5.5 KW 380V With PU Foam Insulated

    Ask Lasest Price
    Brand Name : ZBR
    Model Number : ZBR-D-23
    Certification : CE, SGS, ISO9001
    Price : Negotiated
    Payment Terms : Negotiated
    Supply Ability : 10 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Window / Door Frame Roll Forming Machine 5.5 KW 380V With PU Foam Insulated

    Window / Door Frames Roll Forming Machine 5.5 KW 380V With PU Foam Insulated

    Product Description


    Model (for windows): 37mm; 39mm; 42mm; 45mm (flat); 55mm

    Model (for doors): 77mm; 90mm; 95mm; 98mm; 100mm

    COMPLETE LINE LAYOUT

    Double head un-coiler ----- feeder guide --- roll forming –Heating device-- --PU Injection -roll forming – keep heating box --- ---- Pneumatic punching hole ------PLC control --- Flying saw cutting unit --- 6 meters roller run out table

    http://www.lbrollformer.com/uploads/20150513150406754.png

    COMPONENT OF COMPLETE LINE:

    ① Double head un-coiler: 2 tons capacity manual one/unit

    ② Main frame of forming machine one/unit

    ④ Straighten part one / unit

    ⑤ Pneumatic flying saw cutting machine one / unit

    ⑥ Simple roller stacker 6 meters one/unit

    ⑦ PLC system: One/unit

    8. PU Foam injection machine: One/ set


    Specification for Foam machine:

    1. Motor power: total 5.5 KW; 380V; 50/60HZ China brand

    2. Mixing head with one spare is included

    3. Mixing pump quantity: 8g/Second

    4. Density: 70~80 Kg/m3

    5. Mixing type: mechanical & automatic

    6. Washing: Automatic

    7. Tank volume: 50 KG / tank. Both Poly and ISO

    8. Brand of Foam machine: GREAT WALL.

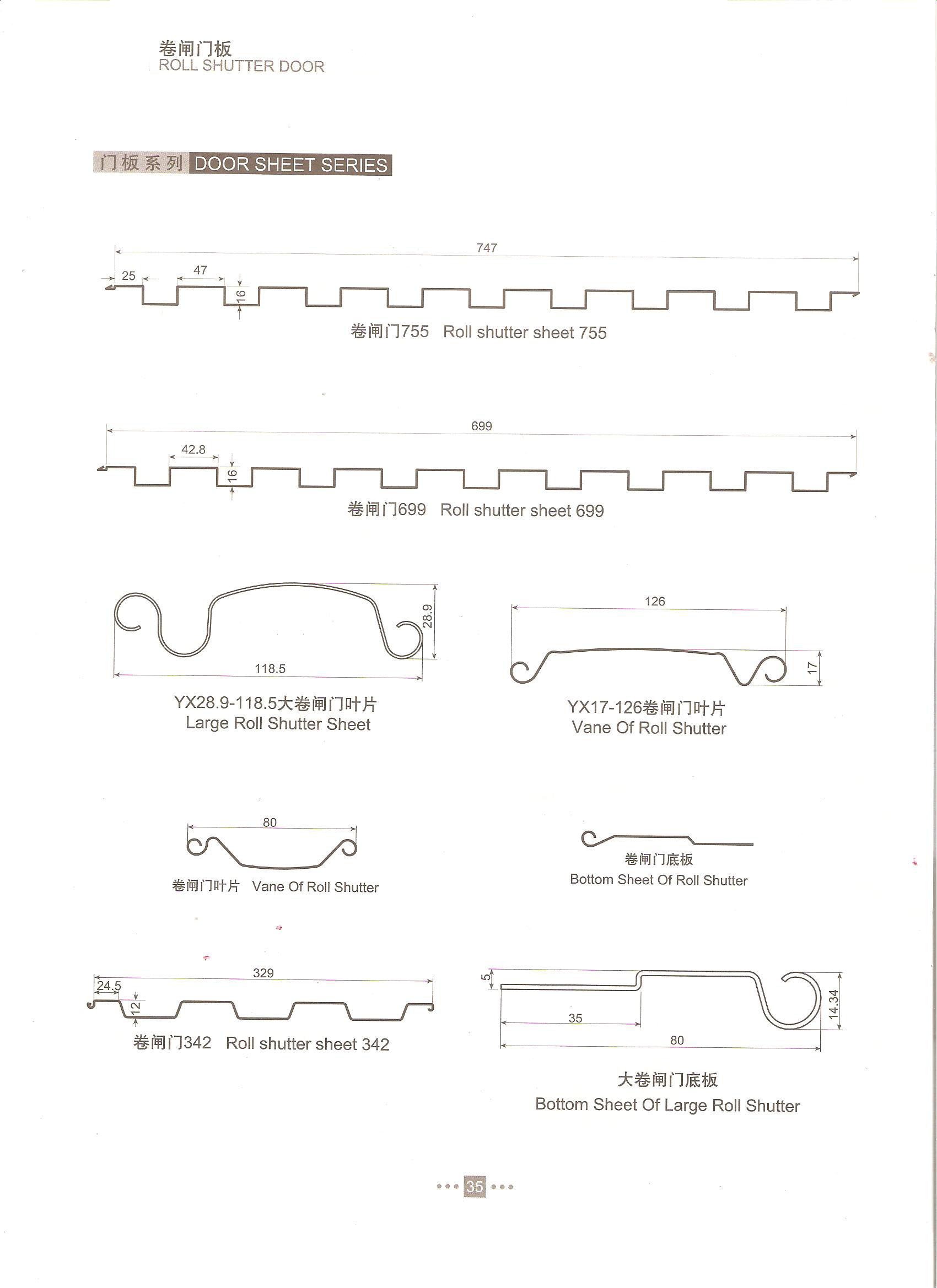

    Profile Drawing
