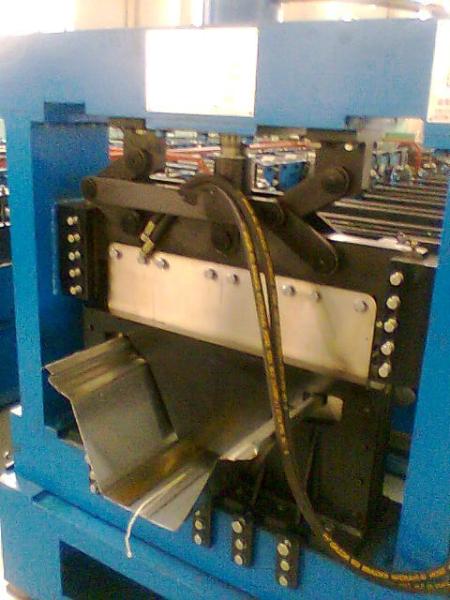

    High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine

    Ask Lasest Price
    Brand Name : ZBR
    Model Number : ZBR-S-112
    Certification : CE ISO
    Price : Negotiated
    Payment Terms : Negotiated
    Supply Ability : 10 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    High Grade No.45 Forged Steel Clip Lock Standing Seam Metal Roof Sheet Making Roll Forming Machine

    Technical Parameters

    Size8200*1400*1500mm
    Weight6500KGS
    Voltage380V/50HZ/3PH
    Motor Power5.5KW
    Hydraulic Power2.2KW
    Forming Steps16Steps
    Working Speed8-12m/min
    Height of Roofing40mm
    Effective Width729mm
    Feeding Material Width914mm
    Thickness0.3-0.6mm
    Thickness for common use and test0.4mm,0.5mm
    Tolerance±2mm
    Roller material

    High grade 45# forged steel, Plated hard chrome

    on the surface of rollers, polished all the rollers;

    Material of principal axisHigh grade 45# forged steel
    Main Accessories

    NoItemsQuantityRemarks
    1Manual/Hydraulic Uncoiler1setUp to customer
    2Main forming machinePre-cutting device1setUp to customer
    Feeding device1set
    Hydraulic system1set
    Roll forming system1set
    Post cutting device1set
    Protective cover1setUp to customer
    3PLC control system with touch screen1set
    4Run out table4pcsUp to customer
